Application scenarios for on-site long-term monitoring: bridges, cable-stayed bridges, cable bridges, tunnels, slopes, landslides, anchor rods, mines



1 channel		2 channels

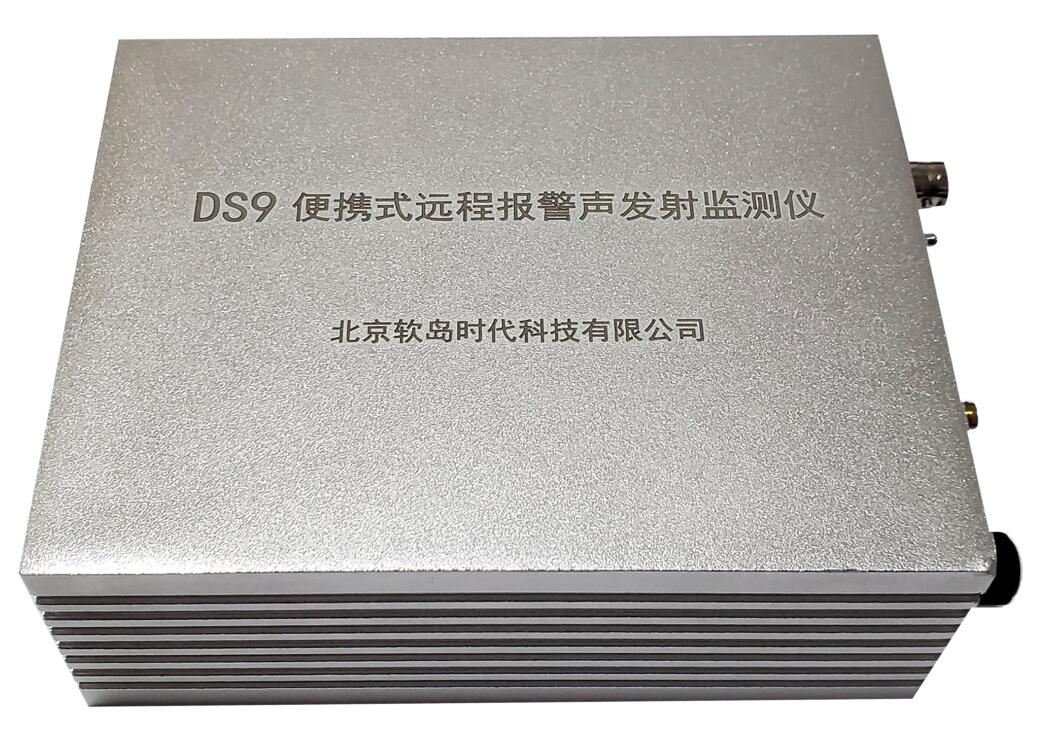

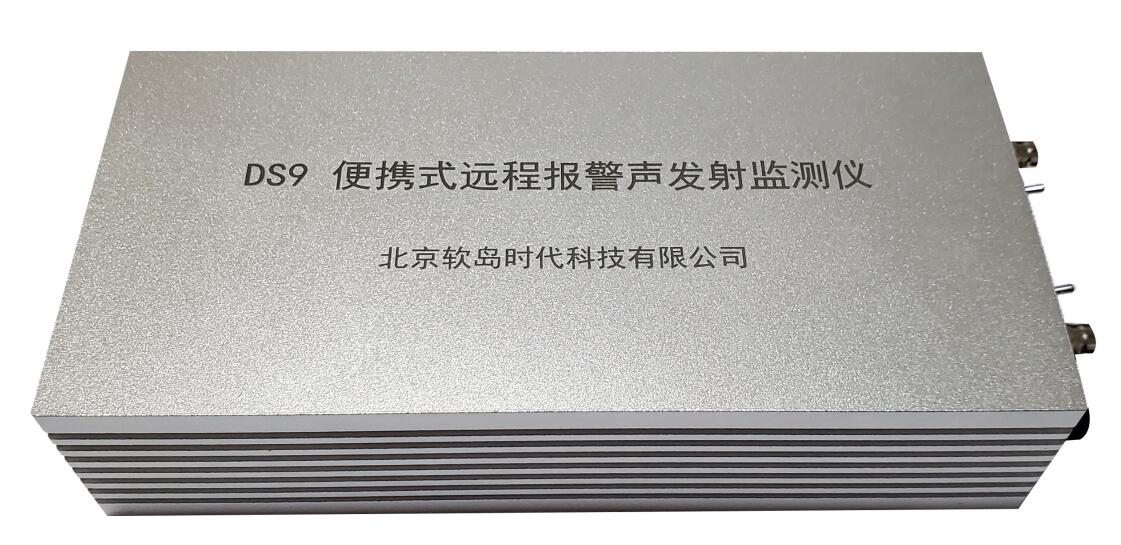

一、Product Introduction:

1. Product specifications: 1 channel, 2 channels.
2. Product type: 4G network mode, LAN mode, fiber optic mode.
3. Portable: The host has a height of nearly 2 coins in diameter. It can be easily placed in vulnerable areas for monitoring without connecting to a computer.
4. Self check function (with 2 channels): 2 channels can trigger and receive signals, ensuring that the sensor coupling is intact and not loose.
5. Remote alarm: It contains a 4G module internally, and the alarm signal can be seen from the network when a characteristic signal appears.
6. Monitoring duration: It can be monitored for years and months, unmanned, and alarm signals can be automatically uploaded to the network.



二、Product Description:

1. The DS9 acoustic emission monitoring system is a system based on the national communication backbone network for on-site acoustic emission monitoring.
2. The DS9 monitor (4G) communicates with the base station. In areas with extensive coverage of 4G signals, DS9 acoustic emission monitoring systems can be installed.
3. The DS9 monitor is easy to install, just install the monitor and sensor, and then power it on. On site, 220V AC power or solar cells can be used for power supply.
4. After the installation of the monitor, customers can remotely set various settings for the DS9 monitor through a computer.
5. After the monitor starts running, the customer's computer can receive real-time acoustic emission data (parameters, waveforms) on site.
6. The acoustic emission parameters sent by the monitor are all backed up on the cloud server, which means that when the user shuts down the computer, the acoustic emission parameters will be automatically saved to the cloud server. After the user starts up, they can browse the parameters on the cloud server and download all or a specified time period. Due to the large amount of data, the acoustic emission waveform is not backed up on the cloud server.
7. The received acoustic emission parameters and waveforms can be analyzed and processed using the DS9AE acoustic emission monitoring system analysis software.
8. Acoustic emission parameters and waveforms can be easily exported so that customers can use other software for analysis.

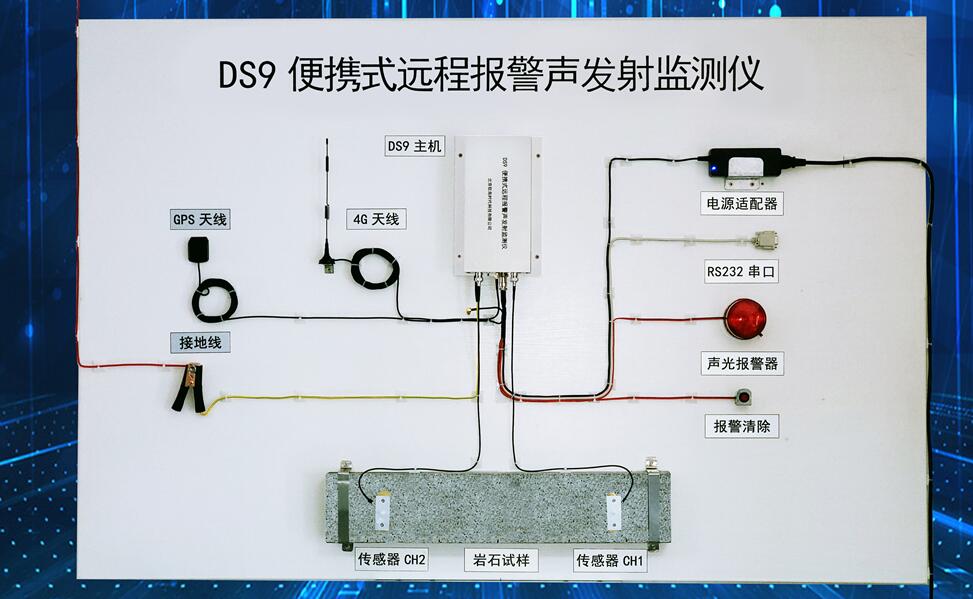

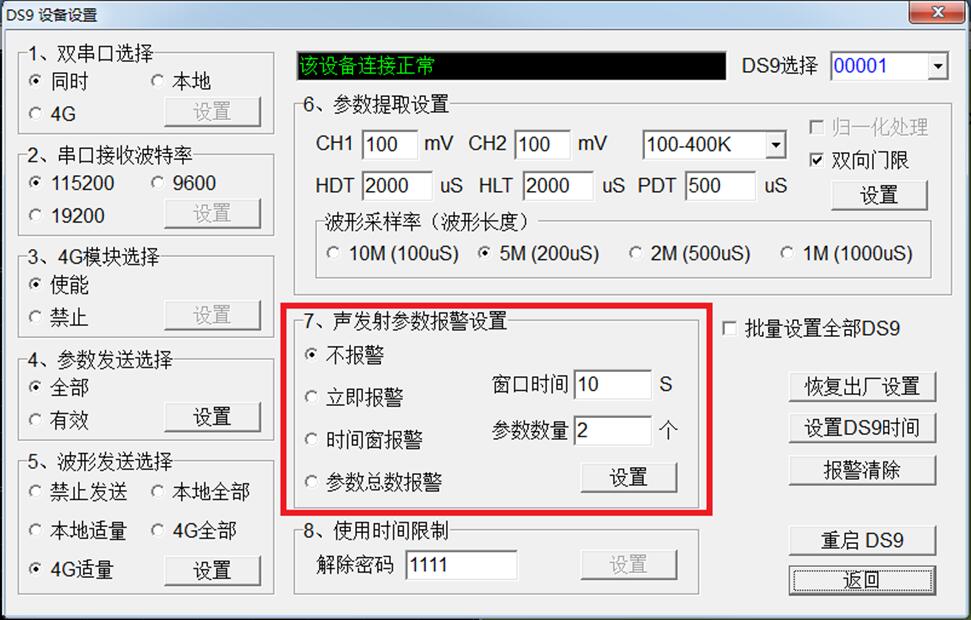

Alarm function：

 三、System introduction (3 modes, the following are introduced)

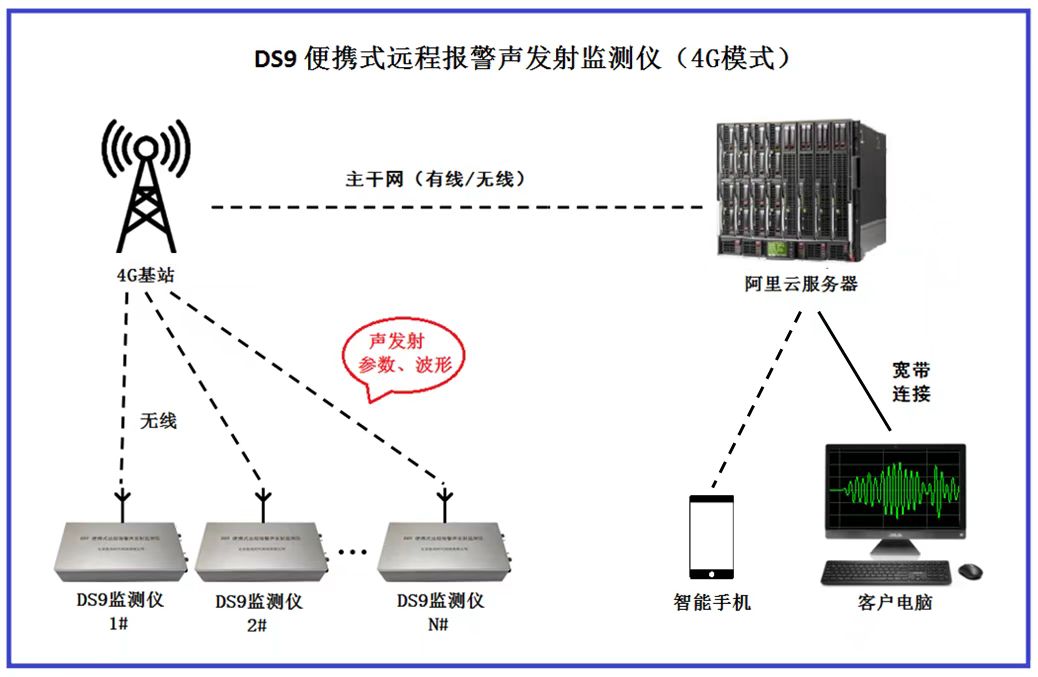

（一）4G network mode

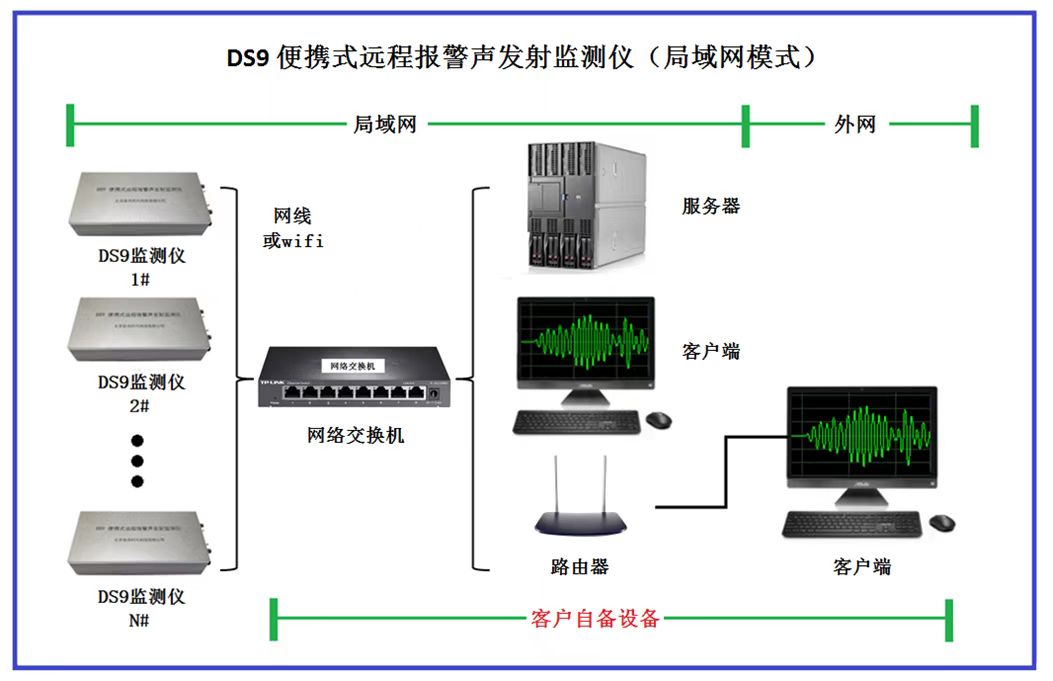

（二）Local area network mode

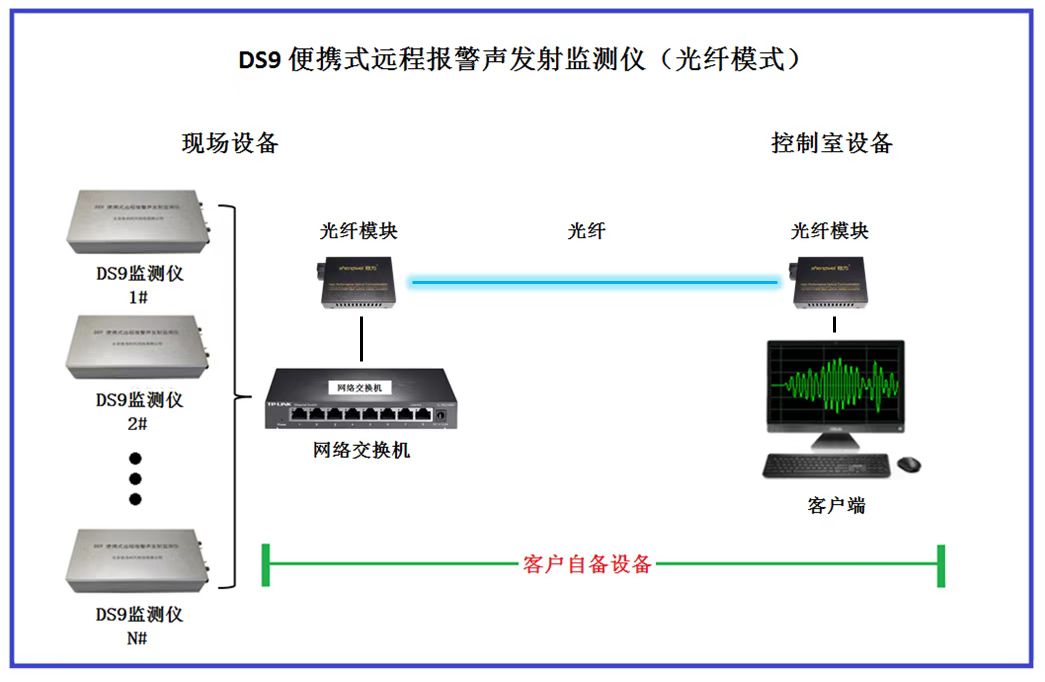

（三）Optical fiber mode



四、Technical Index：

Model	DS9-2W
specifications	Wifi	LAN	4G network
Channels	one channel		two channels
Waveform (1024 points)	yes
parameter	yes
Serial port waveform (1024 points)	yes
Serial port parameters	yes
Parameter sampling rate	10M (non adjustable)
Serial port data transmission	built-in
Waveform sampling rate	10M（100uS）、5M（200uS）、 2M（500uS）、1M（1000uS） Adjustable, different sampling rates for different waveform lengths
AD conversion accuracy	16bit
AD conversion nonlinear error	±0.5LSB
Hardware filter	Multi level software settings
Amplifier gain	20/ 40/ 60 three level adjustable
AST function	yes
Alarm condition settings	User defined, can be updated in real-time
Local alarm output	A set of relay contacts
Local alarm cleared	External switch signal input
Sensor signal input method	single-ended
power supply	DC-24V   0.25A   6W
Usage environment	-10℃～60℃
Overall dimensions	24cm*11.5cm*6cm
Weight	1.5kg

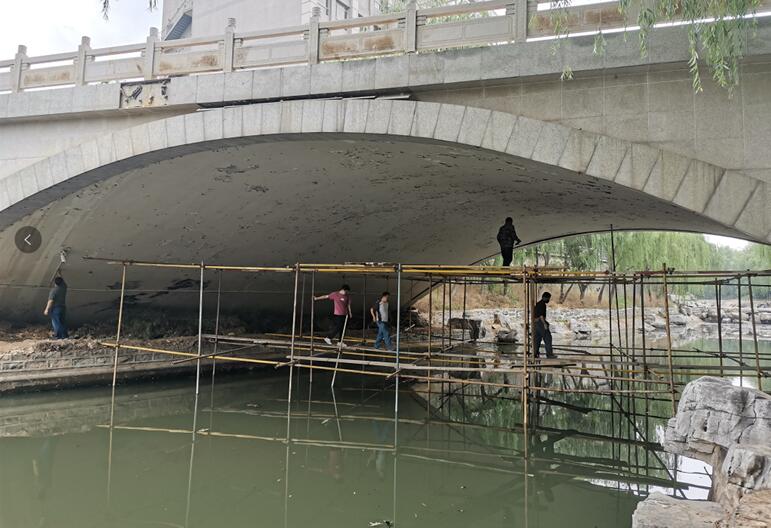

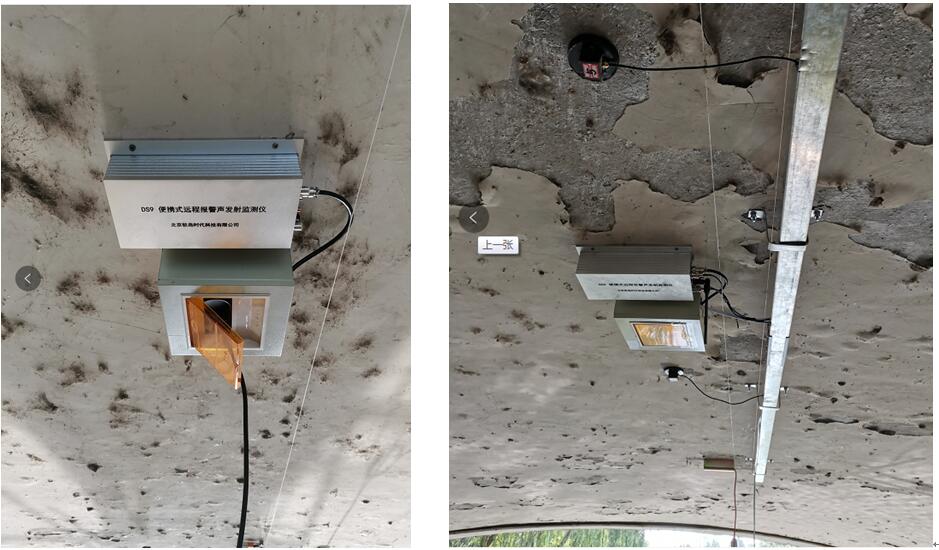

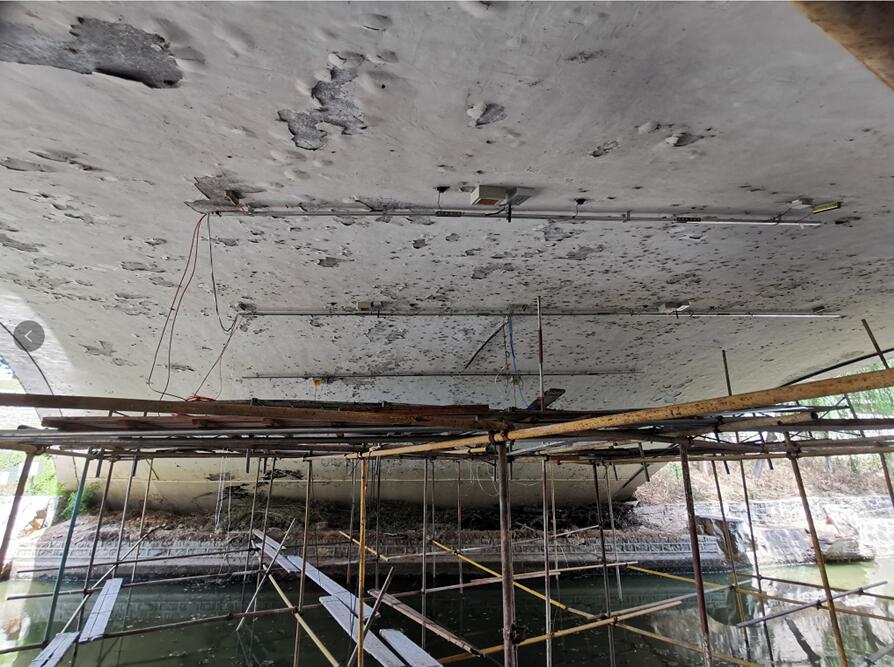

五、Case
