DS10 dynamic and static integrated AE system

DS10 dynamic and static integrated AE system

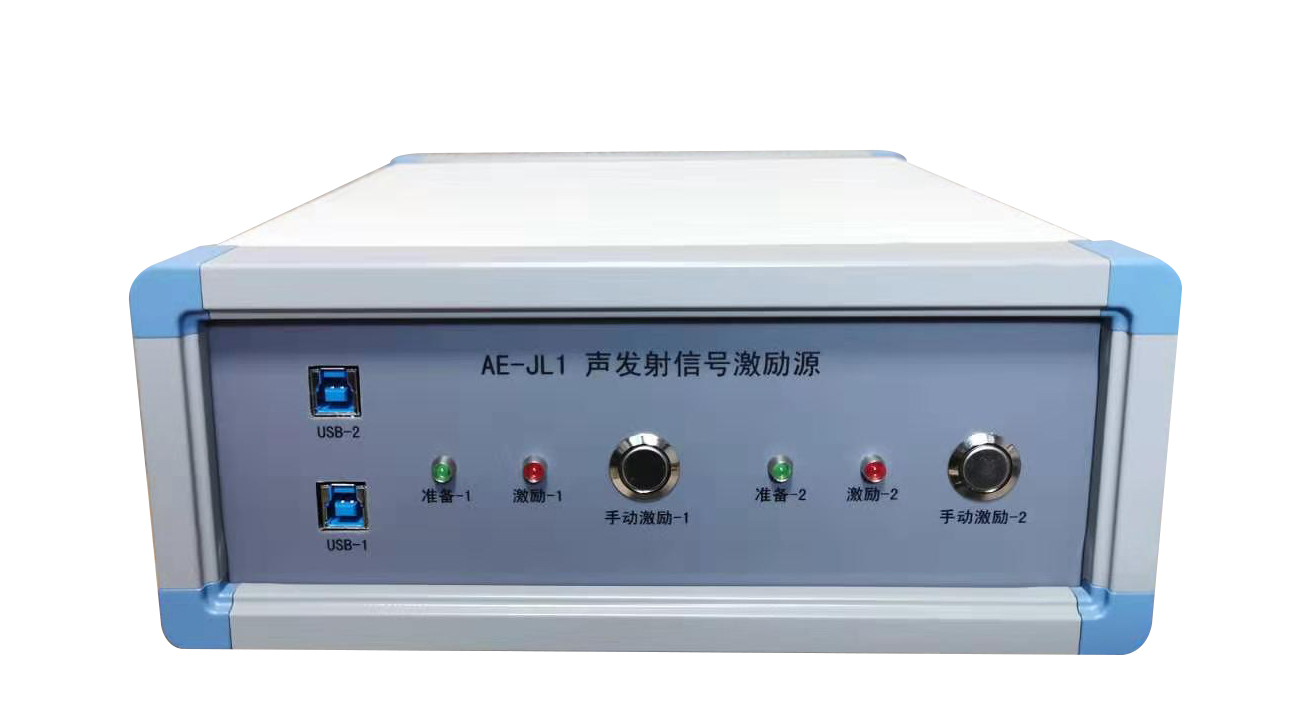

       DS10-32C AE system         DS10-16C AE system   Signal excitation source



Emission function: The host includes any wave emission function

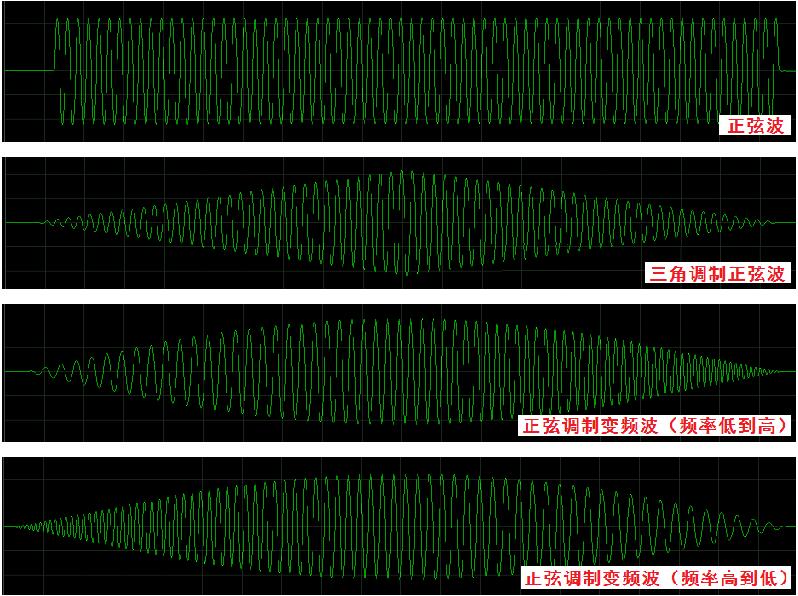

Arbitrary wave emission function: Refers to the ability of the acoustic emission host to emit waveforms of any shape. Including waveforms of different frequencies and shapes (square wave, sine wave, exponential wave, logarithmic wave, etc.), users can edit waveforms of any shape, download them to the acoustic emission host, and the acoustic emission host will stimulate the sensor to generate any waveform.


Technical Index

Model

DS10-48C

DS10-32C

DS10-16C

AE function

The host includes any wave transmission function

Channels

2-48

2-32

2-16

Continuous data pass rate

393MB/S

262MB/S

131MB/S

Waveform data pass rate

288MB/S

192MB/S

96MB/S

Interface type

USB3.0 interface

Data collection method

Multichannel synchronous acquisition

Software operating environment

win7、8、10（64bit）operating system

Continuous collection and storage length

All waveform acquisition, all channels can continuously store waveform data for several hours, ensuring no data loss during the period

Sampling rate

Use 12 channels with

10M per channel;
Use 24 channels with

6M/5M per channel;
Use 48 channels with

3M/2.5M per channel;

Use 8 channels with

10M per channel;
Use 16 channels with

6M/5M per channel;
Use 32 channels with

3M/2.5M per channel;

Use 4 channels with

10M per channel;
Use 8 channels with

6M/5M per channel;
Use 16 channels with

3M/2.5M per channel;

Number of external reference channels

24 channels

16 channels

8 channels

External reference sampling frequency

60KHz、50KHz

External parameter conversion accuracy

16bit

External parameter input range

±5V或±10V

Input signal range

±10V

A/D conversion accuracy

16bit

Sampling trigger method

Signal threshold triggering, external triggering

Host system noise

± 1 sampling resolution, i.e. ± 0.308mV

Channel input impedance

50Ω

Nonlinear error of A/D conversion

±0.5LSB

Signal input type

single-ended

Operating temperature range

0℃～50℃

Power supply mode

External 220V power supply
