System Overview:

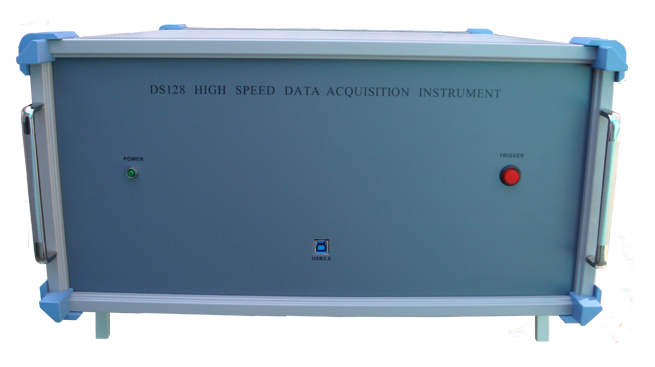

Based on the user's demand for studying strain collection of large components, our company has developed a new 128 channel high-speed data acquisition instrument. The specifications include: 16, 32, 64, 96, and 128 channels. Adopting the USB3.0 interface format, 128 channels are synchronously collected at a sampling speed of 500kHz per channel, solving the problem of low channel count and sampling speed in the current market for strain gauges.
The DS-128 system is connected to corresponding sensors, which can monitor various parameters such as strain, pressure, temperature, vibration, displacement, voltage, current, etc. in real-time, record and save complete waveform data, making it convenient for users to analyze. Widely used in geotechnical engineering, bridge engineering, aviation and other fields.
Technical Index
Model |
DS-128 |
Channels |
16、32、64、96、128channels |
Interface type |
USB3.0 interface |
Running software environment |
win7（64bit）operation system |
Continuous data pass rate |
131MB/S |
Waveform data pass rate |
128MB/S |
Data collection method |
Multichannel synchronous acquisition |
Storage method of waveform |
Continuous recording of waveform data from all channels ensures no loss of data |
Sampling rate |
500KHz、400KHz、250KHz、200KHz、100KHz、50KHz、20KHz、10KHz |
Continuous collection and storage length |
For the 4TB hard disk configured in the system, strain signals can be synchronously collected at a sampling rate of 500KHz, and waveform data can be continuously stored for 8.7 hours to ensure no data loss during this period. |
A/D conversion accuracy |
16 bit |
Input signal range |
±10V |
Host system noise |
Less than 1mV |
Channel input impedance |
10KΩ |
Nonlinear error of A/D conversion |
±0.5LSB |
Signal input type |
single-ended |
Sampling trigger method |
Immediately triggered after collection, externally triggered |
input range |
±2V or ±10V |
Operating temperature range |
0℃～50℃ |
Power supply mode |
External 220V power supply |
