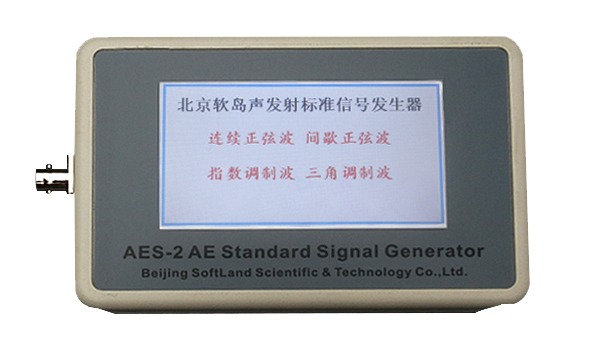

Model

AES-2 standard signal

generator

Output waveform amplitude range

±10mV to ±5V

Output waveform frequency range

10kHz to 1MHz, 1kHz step continuously adjustable

Range of non continuous sine wave cycles

1 to 32767 continuously adjustable

Output waveform interval time

1mS to 32767 mS, 1mS step continuously adjustable

Supply Voltage

28V (self powered by AE system)

Overall dimensions

155mm*100mm*40mm

Overall weight

645g

No.

Functional characteristics of

AES-2 standard signal generator

1

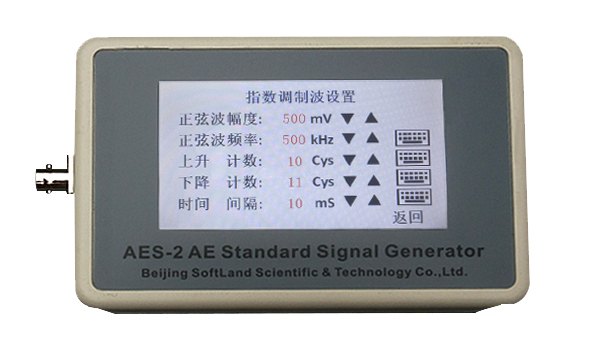

Adopting a 480 * 272 color LCD touch screen, menu style touch operation, easy to use.

2

It can output four waveforms: continuous sine wave, modulated sine wave, exponential modulation wave, and triangular modulation wave.

3

No need for external power supply, directly powered from the acoustic emission instrument, simple and convenient to use.

4

The instrument is equipped with an anti-static metal casing to avoid external electromagnetic interference.

5

You can save the last set parameter value.

6

The parameters can be set through two methods: the addition and subtraction buttons and the number keyboard.
