Pre amplifier
Pre amplifier
 |
 |
|||

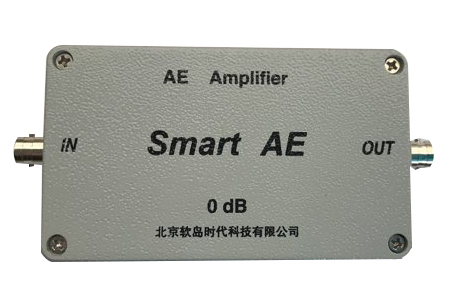

| 0dB | 20dB | |||
 |
 |
|||

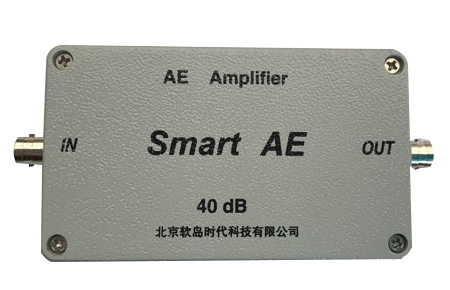

| 40dB | 60dB | |||
 |
||||

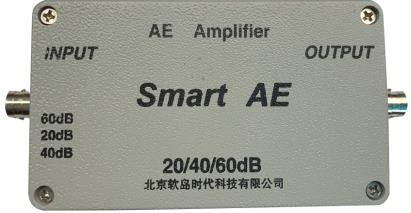

| 20/40/60dB | ||||
Technical indicators
Category |
Fixed amplifier |
Adjustable amplifier |
|||
Model |
0dB |
20dB |
40dB |
60dB |
20/40/60dB |
Gain |
0dB(1x) |
20dB(10x) |
40dB(100x) |
60dB(1000x) |
20dB level：20dB(10x) |
output noise |
1mV |
1mV |
2.1mV |
10mV |
20dB level：1mV |
bandwidth |
20KHz--1500KHz |
||||
AST function |
Equipped with sensor automatic testing function |
||||
Impedance |
Greater than 10M Ω |
||||
Output Impedance |
50 Ω |
||||
Output dynamic range |
Greater than 73.5dB |
||||
Power supply mode |
BNC cable coaxial power supply or direct external power supply |
||||
maximum output voltage |
±10V |
||||
Supply Voltage |
DC24-28V |
||||
Operating temperature range |
-20℃～60℃ |
||||
interface type |
BNC interface |
||||
protection grade |
IP66 |
||||
Sealing performance |
Internal circuit fully sealed |
||||
