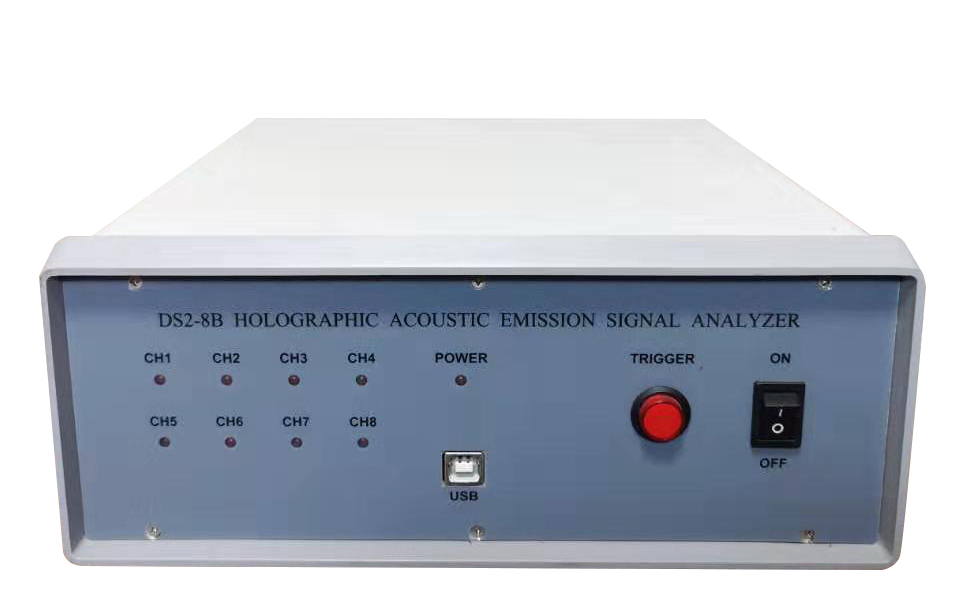

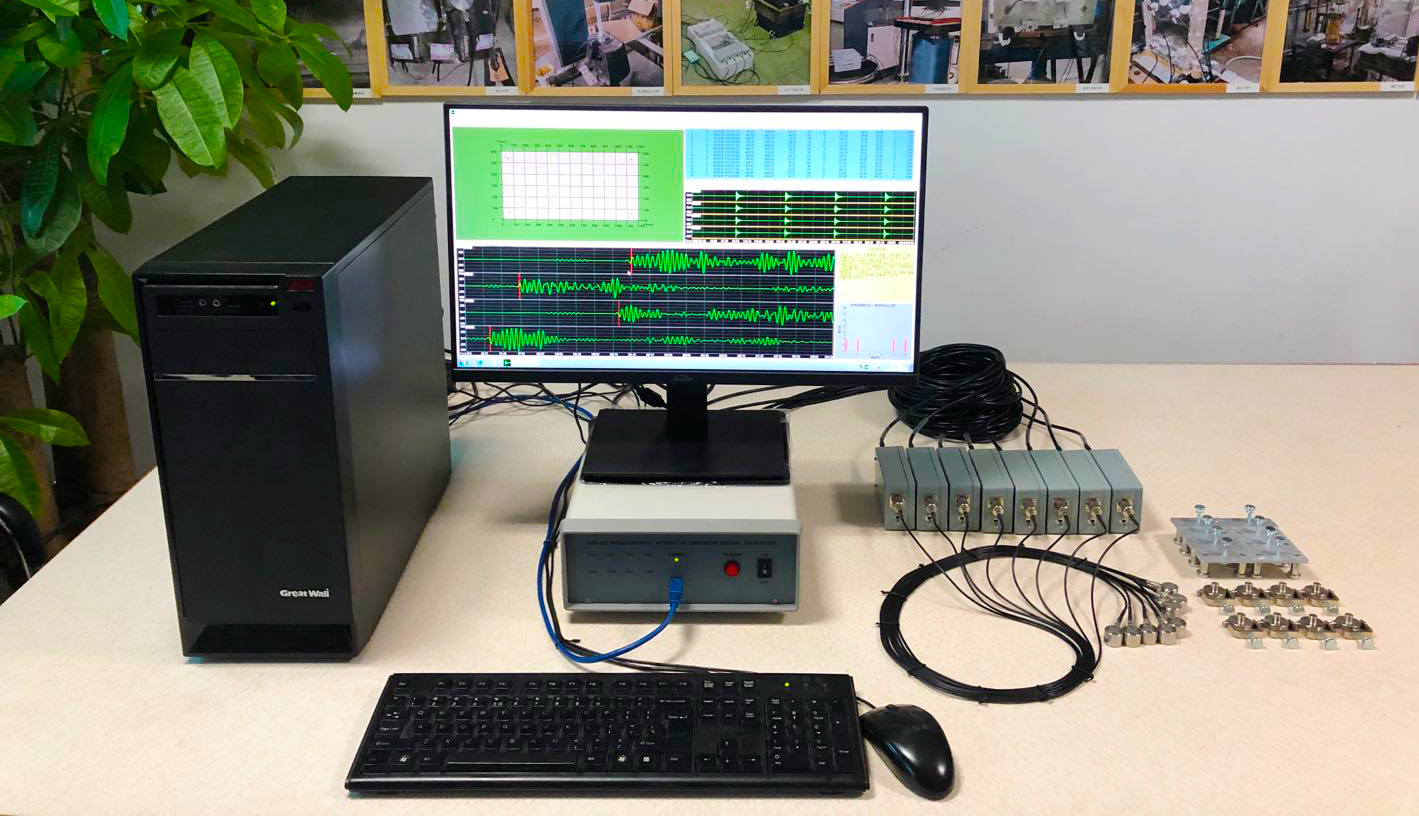

DS2 series All information AE system
DS2 series All information AE system
 |
Technical Index
Type |
DS2-8A |
DS2-8B |
Channels |
2、4、6、8channels |
|
Interface type |
USB2.0interface |
|
Software operating environment |
win7（32bit）operating system |
|
Continuous data pass rate |
Greater than 48MB/S |
|
Data collection method |
Multichannel synchronous acquisition |
|
Storage method of waveform |

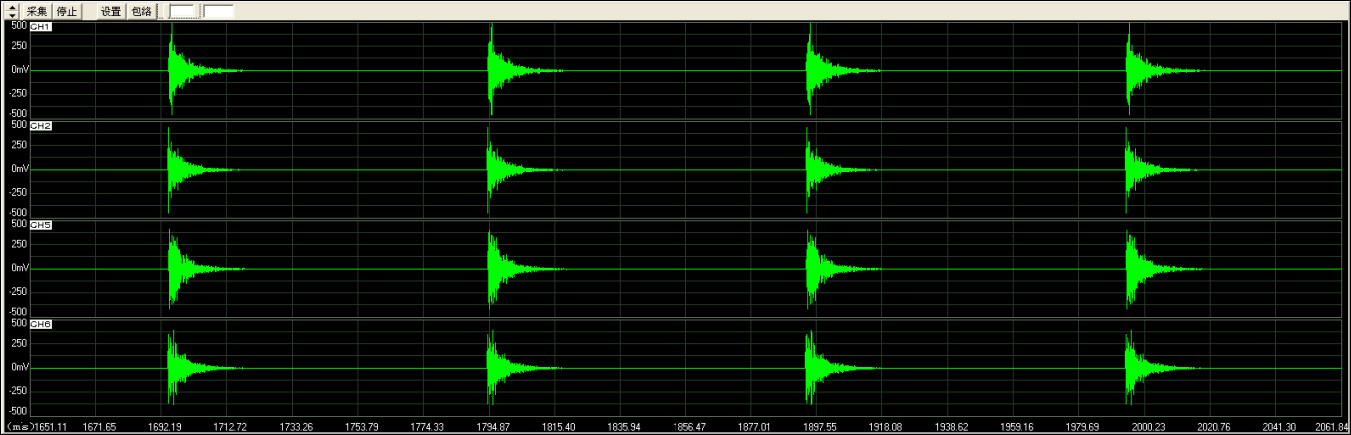

Continuous recording of waveform data from all channels ensures no loss of data |
|
Continuous collection and storage length |
For a 2TB hard drive, synchronous acquisition of eight channel acoustic emission signals at a 3MHz sampling rate can store waveform data for several hours continuously, ensuring no data loss during this period. |
|
A/D conversion accuracy |
16bit |
|
Sampling rate |
Dual channel: 10 MHz |
|
Four channels: 5 MHz, 6 MHz |
||
Eight channels: 2.5 MHz, 3 MHz, 1MHz, 500 KHz, 200 KHz, 100 KHz |
||
Data collection method |
Multichannel synchronous acquisition |
|
Input signal range |
±10V |
|
Host system noise |
± 1 sampling resolution, i.e. ± 0.308mV |
|
Channel input impedance |
50Ω |
|
Nonlinear error of A/D conversion |
±0.5LSB |
|
Signal input type |
single-ended |
|
Sampling trigger method |
Signal threshold triggering, external triggering |
|
Number of external reference channels |
8channels （DS2-A series without external reference） |
|
External parameter conversion accuracy |
16bit （DS2-A series without external reference） |
|
External parameter input range |
±5V or ±10V （DS2-A series without external reference） |
|
Operating temperature range |
0℃～50℃ |
|
Power supply mode |
External 220V power supply |
|
Characteristics

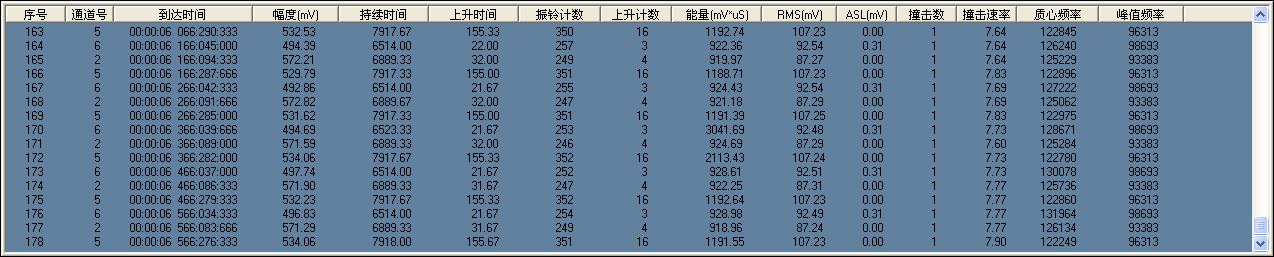

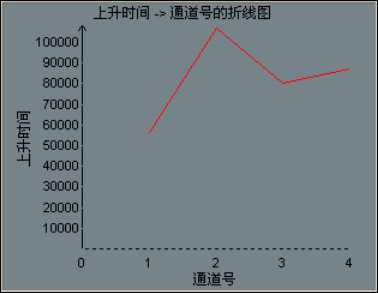

2. Based on the collected waveforms, more precise extraction conditions for acoustic emission parameters can be set, such as the threshold of each channel, impact identification time, impact locking time, and so on. This can obtain more accurate acoustic emission parameters, avoiding the error in extracting acoustic emission parameters caused by setting thresholds and other parameters based on experience.

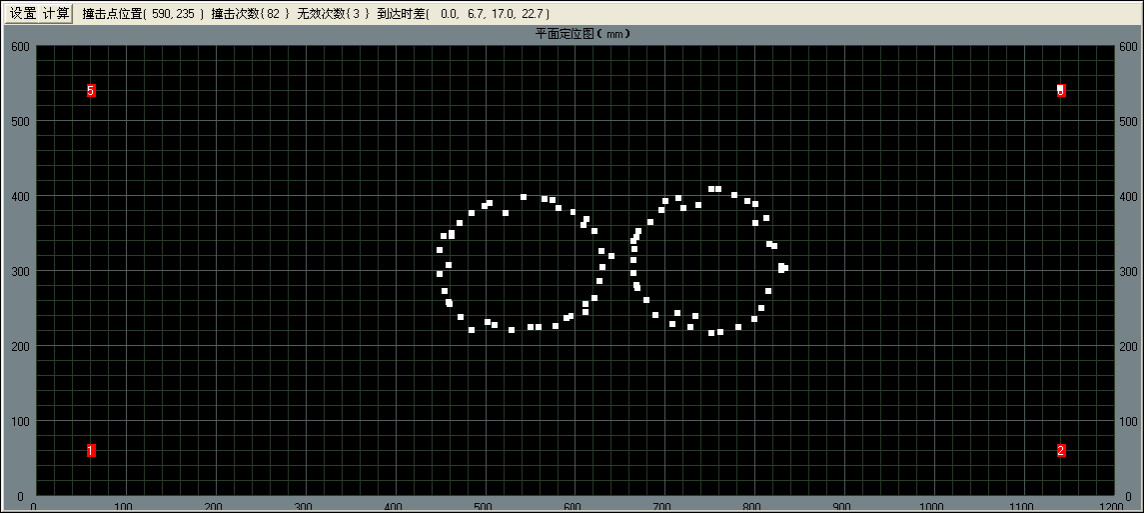

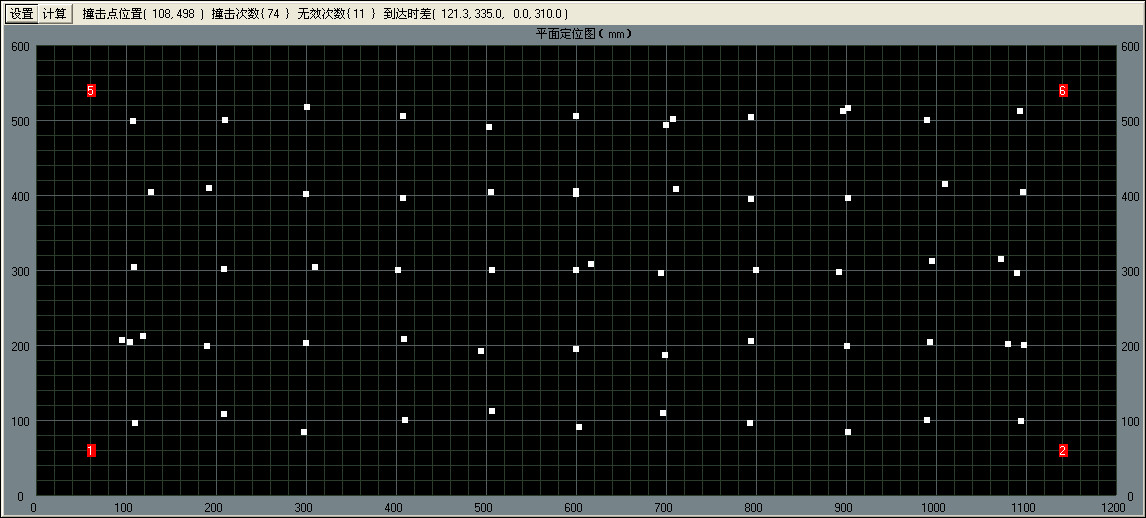

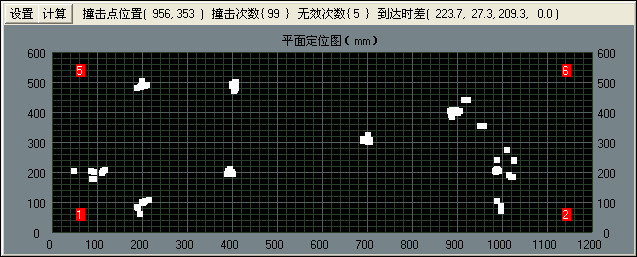

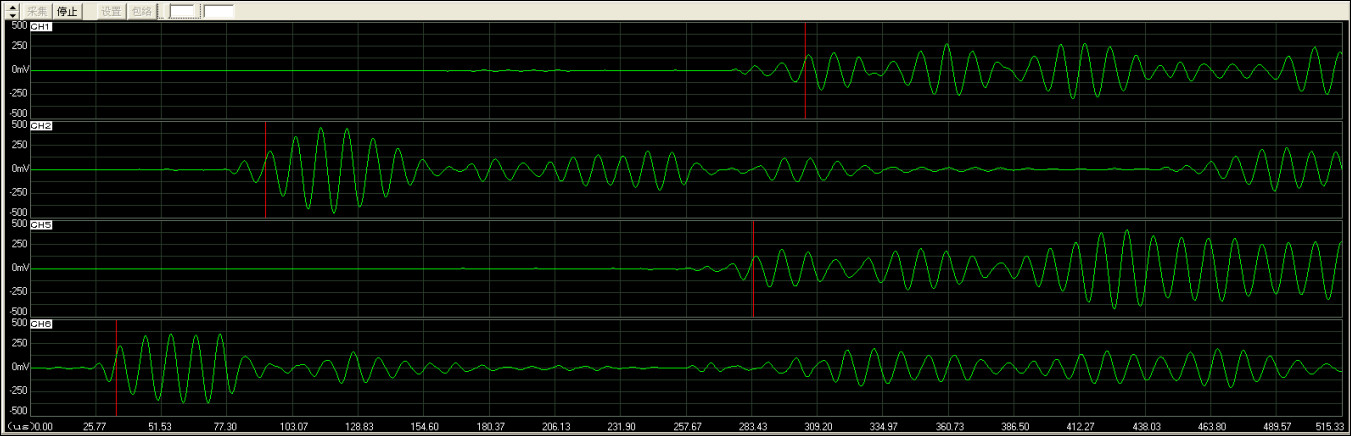

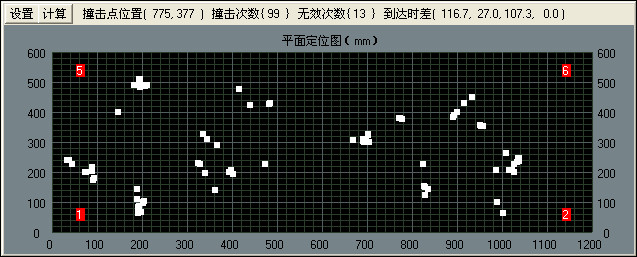

3. Due to the continuous and complete collection of acoustic emission signals, all acoustic emission positioning points have corresponding positioning waveforms. By accurately adjusting the arrival time of the waveform (manually or automatically), more accurate positioning points can be obtained.
4. The collected acoustic emission signals can be exported in text or binary format by users to select all or part of the waveforms for waveform analysis using tools such as MATLAB.

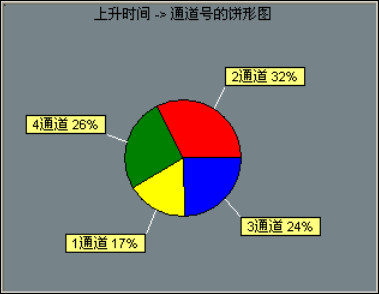

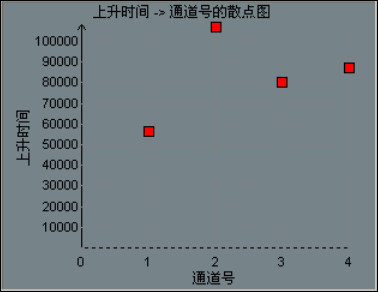

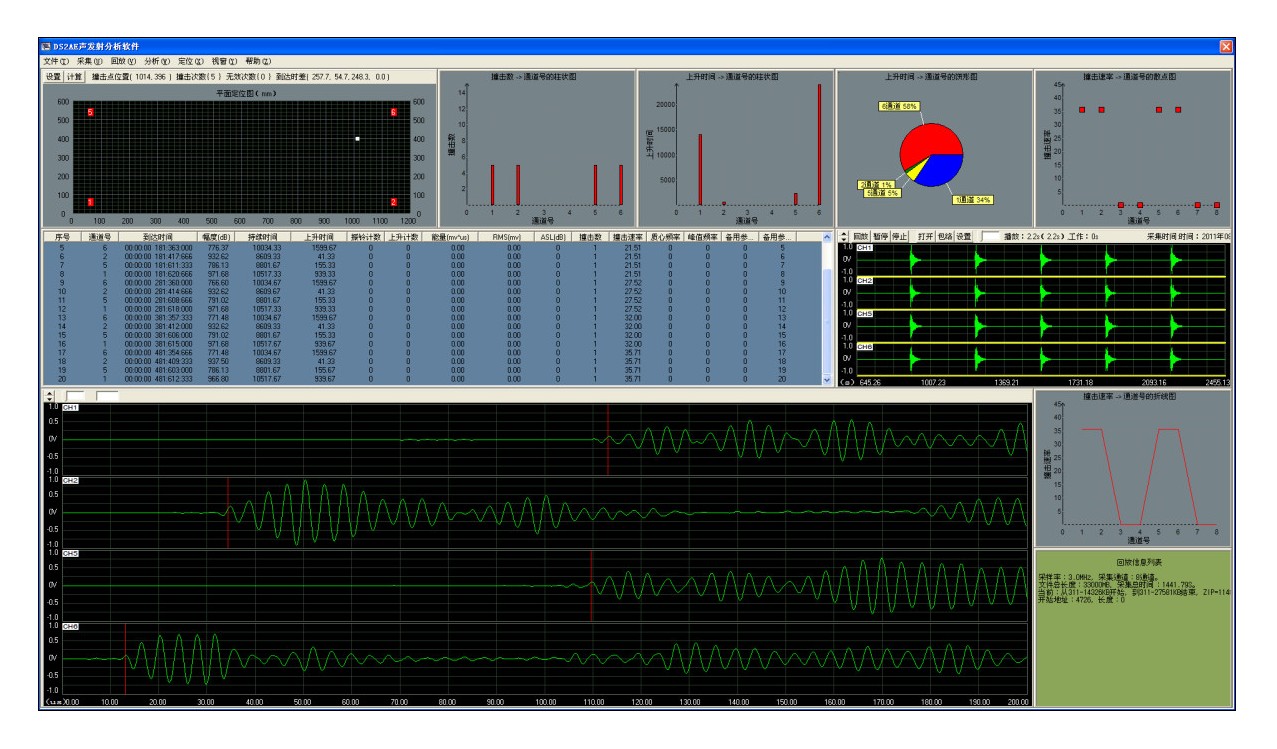

Software
